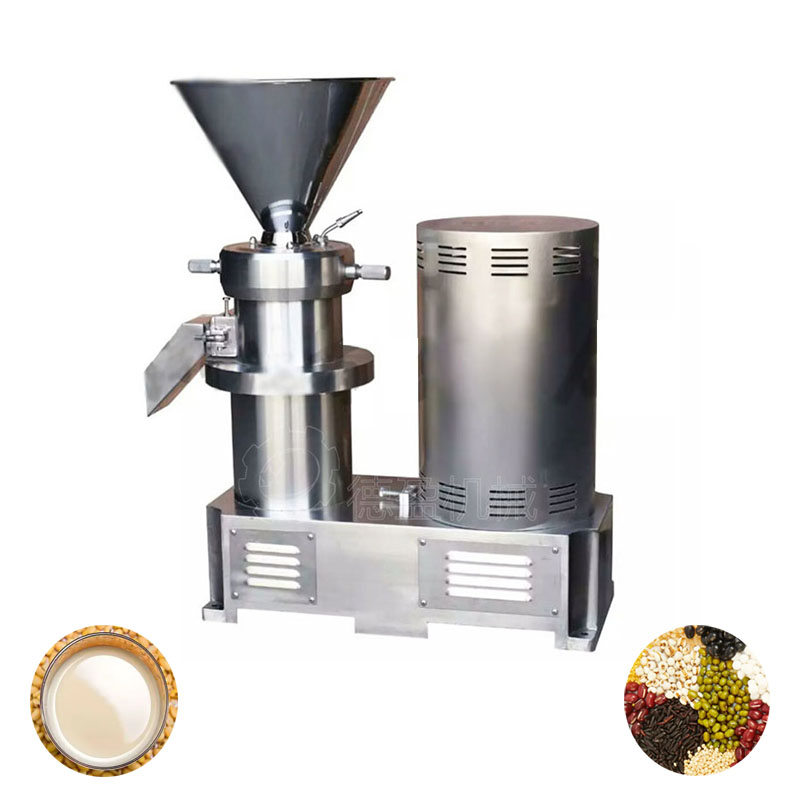

Colloid Mill Grinder: Advanced Wet Grinding Technology for Modern Food Processing Industry
The colloid mill grinder is a high-performance wet grinding and emulsification machine widely used in food, pharmaceutical, and chemical industries. It achieves ultra-fine particle reduction through a high-speed rotor–stator system, enabling stable, smooth, and homogeneous product textures.
At DY Food Machinery, colloid mill systems are engineered for continuous industrial production lines such as sauce making, nut butter processing, and dairy emulsification.
1. Working Principle of Colloid Mill Grinder
The machine consists of a high-speed rotor and a stationary stator. Material passes through a narrow adjustable gap and is subjected to:
High-speed shear force
Strong friction grinding
Hydraulic turbulence & emulsification effect
This process ensures particle size reduction to micron-level while simultaneously achieving mixing and homogenization.

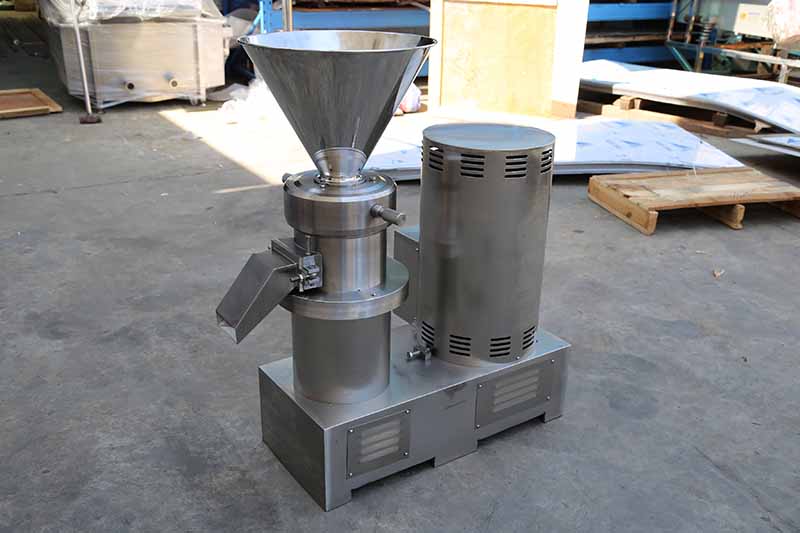

2. Technical Structure Overview
| Component | Function |
|---|---|
| Rotor | High-speed rotating grinding core generating shear force |
| Stator | Fixed grinding surface for resistance & cutting |
| Gap Adjustment System | Controls fineness of output material |
| Feeding Hopper | Ensures stable material input |
| Cooling System (Optional) | Prevents overheating during continuous operation |
3. Technical Parameters
| Item | Specification |
|---|---|
| Capacity | 20–1000 kg/h |
| Power | 1.5 kW – 37 kW |
| Fineness | 50–100 microns adjustable |
| Material | 304 / 316L stainless steel |
| Application | Wet grinding / emulsification / homogenization |
4. Industrial Applications
Sauce & Condiment Production
Used in chili sauce, ketchup, mayonnaise, soybean paste to improve texture stability and prevent separation.
Nut Butter Processing
Peanut butter, sesame paste, almond paste require ultra-fine grinding for smooth texture and long shelf life.
Dairy & Beverage Industry
Used for milk, yogurt, juice emulsification to improve stability and mouthfeel.
Pharmaceutical & Cosmetic Industry
Applied in ointments, creams, lotions and herbal emulsions for uniform dispersion.
5. Colloid Mill vs Traditional Grinder
| Feature | Colloid Mill | Traditional Grinder |
|---|---|---|
| Working Principle | High-shear rotor–stator | Impact crushing |
| Material Type | Wet / viscous materials | Dry materials |
| Uniformity | Very high | Medium |
| Emulsification | Excellent | Limited |
6. Why Choose DY Food Machinery?
The DY colloid mill grinder is designed for industrial continuous production with stable performance and customizable configurations.
High efficiency continuous operation
Stable particle size output
Easy cleaning and maintenance
Food-grade stainless steel construction
Suitable for multiple industries
7. Global Market Trend
With the rise of clean-label food, plant-based products, and natural emulsions, demand for colloid mill technology continues to grow globally.
Reference: Colloid Mill - Wikipedia
8. Conclusion
Colloid mill grinders are essential equipment in modern food production systems, enabling high-quality emulsification and consistent product texture across industries.
