Continuous vacuum packing machine

In food processing, central kitchen and large chain food store food preparation industry, mass packaging operation puts forward higher requirements on equipment stability, continuity and intelligent degree. The continuous vacuum packing machine (continuous rolling type) launched by Deying Machinery adopts chain drive conveyor belt and automatic cap opening structure, and cooperates with PLC intelligent control system to realize uninterrupted cycle packing of materials, significantly improving production efficiency and reducing labor cost.

Product Overview

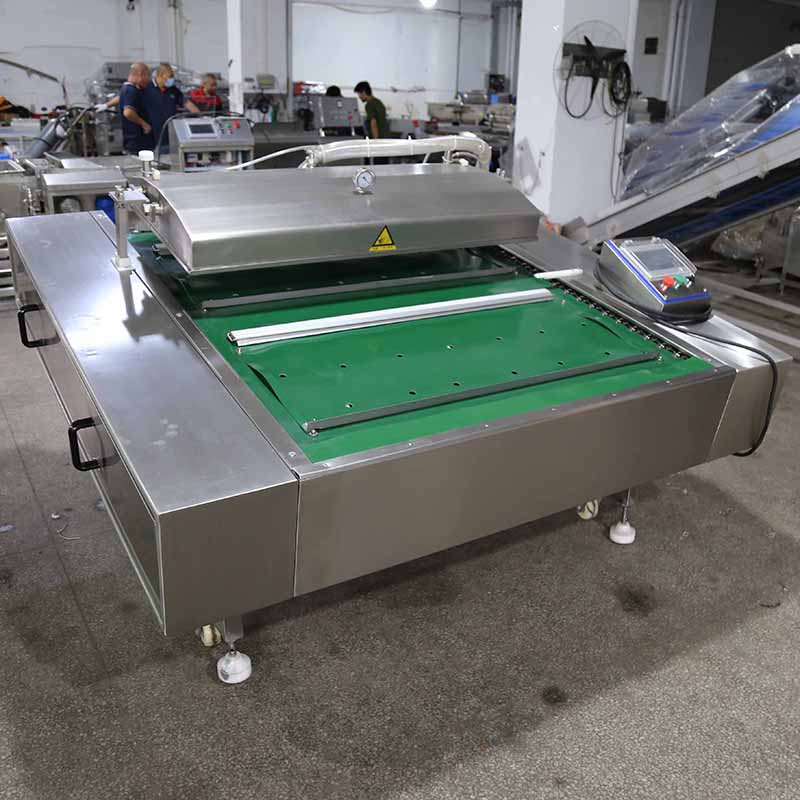

This equipment is a rolling vacuum packaging equipment suitable for continuous production vacuum packaging scenarios. Users only need to place the products to be packed continuously on the conveyor belt, and the equipment can automatically complete the whole process of conveying, vacuumizing, sealing, venting, opening and discharging. Uninterrupted cycle working mode, greatly increasing the output of single shift, ideal for packaging workshops above medium-sized.

main features

Continuous rolling conveying, efficient and labor-saving

The chain clasps the conveying belt, with automatic cover opening function, the equipment operates continuously without waiting for manual cover placing, and the packing pace is compact, greatly saving operation time and labor cost.

PLC intelligent control, parameter adjustable

The PLC control system can be used to set the vacuum time and conveyor belt stepping/conveying time according to different material characteristics. Full-process automatic operation, with emergency stop button, safe and reliable.

Adjustable Tilting Table Top

The worktop angle can be tilted and adjusted according to the material type (such as liquid, powder or slippery material) to prevent the material from overflowing or sliding and improve the packaging adaptability.

Real-time vacuum monitoring

High-precision vacuum gauge shall be provided at the vacuum pumping place, so that the operator can master the vacuum degree in the cavity at any time, so as to ensure that the packaging effect of each batch is stable and consistent.

High-power vacuum pump with strong performance

It is equipped with high-power vacuum pump, with fast air pumping speed and high ultimate vacuum degree, which can maintain stable performance and extend the service life of the equipment even under high frequency continuous operation.

Detailed description of workflow

Standby conveying: After the equipment is started, the conveyor belt runs in a timed stepping manner according to the set parameters, and stops automatically when reaching the specified position, waiting for manual feeding.

Feeding into the vacuum chamber: the operator puts the packaging bag on the conveyor belt, and the conveyor belt brings the materials into the vacuum chamber.

Closing and vacuumizing: the upper working chamber falls down automatically and the vacuum pump begins to extract air from the working chamber. When the preset air extraction time is reached, the pneumatic valve closes to stop air extraction.

Inflation (optional): if equipped with the inflation function, the inflation valve is opened, and the protective gas (such as nitrogen) is filled according to the set parameters, suitable for the materials easy to oxidize or need to be preserved.

Pressurization sealing: the pressurization valve opens automatically, the air bag inflates, pushes the supporting plate, heating rod and heating strip to press the sealing part, and the heating strip is heated by electricity to complete the sealing.

Cooling air bleed: After sealing, the heating strip stops heating and enters the cooling delay stage, then the air bleed valve opens automatically and the working chamber returns to the normal pressure.

Uncovering and discharging: the upper working chamber opens automatically, the conveyor belt rotates, and the packaged products are sent out of the working platform. At this point, one working cycle ends and the equipment automatically enters the next cycle.

Scope of application

Food industry: vacuum preservation package for meat, pickled vegetables, soy products, snack food, aquatic products, etc.

Electronic and precision parts: anti-oxidation and moisture-proof packaging.

Chemicals and pharmaceuticals: oxygen and moisture resistant packaging of powdery and granular materials.

Other areas requiring long continuous vacuum seals.
