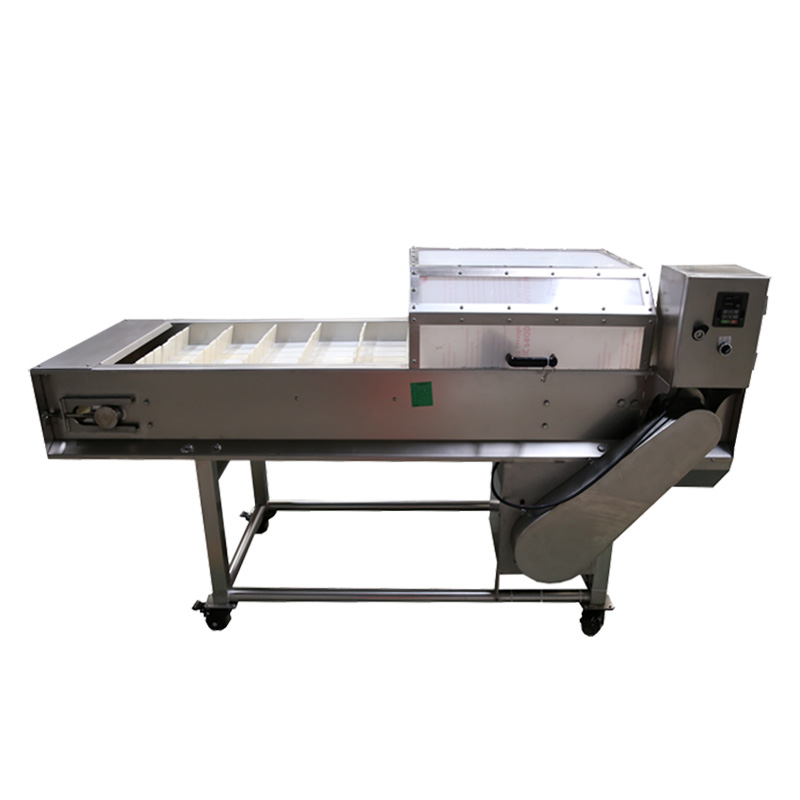

Fruit and Vegetable Segmenting Machine

A fruit and vegetable slicer is a processing equipment specifically designed to evenly cut fruits and vegetables into pieces, segments, and slices. This device is widely used in food processing plants, central kitchens, fruit and vegetable distribution centers, catering chains, agricultural product processing enterprises, and other fields. Through efficient and automated cutting systems, processing efficiency has been improved, ensuring consistency in product specifications while complying with hygiene and safety standards.

Usage process:

1. No load test: Confirm that the power supply is 380V (customized for special voltages), connect the power supply, press the start switch, and let the machine idle for 1-2 minutes. Listen carefully for any abnormal noise or friction, and confirm that the cutting blade, conveyor belt, and other components are running smoothly.

2. Uniform feeding: After the machine runs smoothly, clean and peeled long fruits and vegetables (such as radish, cucumber, etc.) are continuously and uniformly fed into the slot from the feeding port of the conveyor belt. Be careful not to feed too much at once to prevent material accumulation from causing motor overload tripping or uneven cutting.

3. Automatic discharge: The material is conveyed to the cutting blade area by a conveyor belt, and is cut into sections, pieces, and other specified sizes by a reciprocating vertical blade clamped by upper and lower pressure belts. After cutting is completed, the conveyor belt automatically discharges the finished products. Please make sure to place the material receiving frame or processing line conveyor belt below the discharge port in advance.

Equipment features:

The commercial fruit and vegetable slicer adopts a 304 stainless steel body, which is sturdy and durable, and meets international food hygiene and safety standards. And equipped with safety protection such as micro switches. The equipment achieves consistent cutting length through customized fixed cutting tools, ensuring uniform finished product specifications and avoiding differences in length. Its cutting speed is fast, with an hourly output of 1-3 tons, and the cutting surface is smooth and flat. The equipment can process leafy vegetables, roots (carrots, white radishes, cucumbers, celery) and other food ingredients.

Feature:

Material: The entire machine is made of high-quality 304 stainless steel. It has strong corrosion resistance and rust prevention ability, fully complies with international food hygiene and safety standards, is durable and easy to rinse.

Advanced cutting technology: using high-precision vertical knives that move back and forth up and down, ingeniously simulating the principle of manual vegetable cutting. The processing surface is flat and smooth, with regular shaping, and the vegetable tissue after cutting is intact, which can maximize its freshness and greatly reduce material loss. This technology ensures that the blades do not damage the conveyor belt.

Safety and protection design: The equipment is equipped with safety micro switches at multiple key positions. When the protective covers of the inlet and outlet are opened, the power will automatically shut down to prevent accidental operation and injury. The motor is equipped with overload protection to prevent material blockage and burning. The control panel is waterproof and dustproof, and the emergency stop button is large and prominent to ensure the safety of operators.

Security certification: The device has passed CE certification and is popular in various countries such as Europe, America, Asia, and Southeast Asia.

Universality and durability

Material quality: 304 stainless steel structure is corrosion-resistant, heat-resistant, easy to clean, and meets food grade hygiene standards.

Multi material compatibility: The equipment is versatile and can handle various ingredients such as white radish, carrots, cucumber, celery, etc. The menu is diverse.

Modular design: The cutting blades, machine casing, and other components are easy to disassemble for maintenance and cleaning.

Simplify the operational process

Machine one key start switch, safety emergency stop button. One person can operate one machine without the need for professional training or complex processes, directly achieving the operation of starting up and processing.

Suitable for various processing industries

Clean vegetable processing and distribution center: efficiently processes carrots, white radishes, cucumbers, etc., with a production capacity of 1000 to 3000 kilograms per hour, ensuring downstream demand for standardized clean vegetables while reducing labor costs.

Central kitchen and group meal delivery: Large quantities of fruits and vegetables are quickly cut into sections for students' nutritious meals, reassuring breakfasts, etc. Adhere to hygiene and efficiency standards.

Agricultural product processing and quick freezing preservation: used in the deep processing of fruits and vegetables, such as cutting fresh vegetables into sections and quick freezing them, or pickling and dehydrating them, can greatly improve processing efficiency and lay the foundation for subsequent packaging and storage.

Specialized Scenarios

Agricultural cooperatives and farmers: can produce standardized semi-finished products of fruits and vegetables such as white radish and cucumber, increase product added value, and help cooperatives shift from raw material supply to value-added processing.

Barbecue and hot pot restaurants: Automated meal preparation to achieve standardized serving. It can quickly cut corn, white radish, cucumber and other vegetables into sections, which can be used for hot pot and barbecue side dishes, reducing labor costs and increasing production capacity.

Frequently Asked Questions

Is the conveyor belt rotating slowly and slipping?

Loose conveyor belts are a common cause, which can be adjusted to an appropriate level of tightness through the tension bolts on the side of the equipment. If the surface of the conveyor belt becomes smooth and frictionless due to long-term use, a new conveyor belt needs to be replaced directly. In addition, if the ratchet or chain components that drive the conveyor belt are damaged, they also need to be replaced or repaired.

Is the equipment running with loud noise and vibration?

Check if the cutterhead is locked and if the blade clearance is too small, causing friction; The wear of the sliding sleeves at both ends of the blade group can also cause jumping. If the noise comes from bearings or gearbox, it may be due to insufficient or damaged motor bearings, gear or turbine wear. Stop the machine for inspection, add lubricating grease or replace damaged parts.

Maintenance method:

Daily maintenance: After daily use, remove the protective cover and clean the blades and conveyor belt with water and a cloth.

Monthly maintenance:

All moving parts of mechanical components must be kept lubricated.

All chains, sprockets, gears, gear racks, and other rotating components should be regularly lubricated with oil or butter.

All axis rotation joints should be regularly lubricated with oil.

Suggest checking the blade fixing screws for looseness every two weeks. The blade is passivated or chipped, and slight wear can be regularly polished by professionals. If the wear is severe, the blade needs to be replaced in a timely manner.

Safety Reminder

Do not open the cover or reach inside the machine during operation.

If there is a jamming, power off first and then handle it.
